Original price was: $336.00.$99.99Current price is: $99.99.
- Shop the Best Quality Online
- Elevate Your Shopping Experience
- Fast and Secure Payments
- Get the quality you deserve, for less.
- 3 hp 3600 RPM, 13.1-11.8 amps 208-230 Volts 60hz. Capacitor Start Capacitor Run Motor

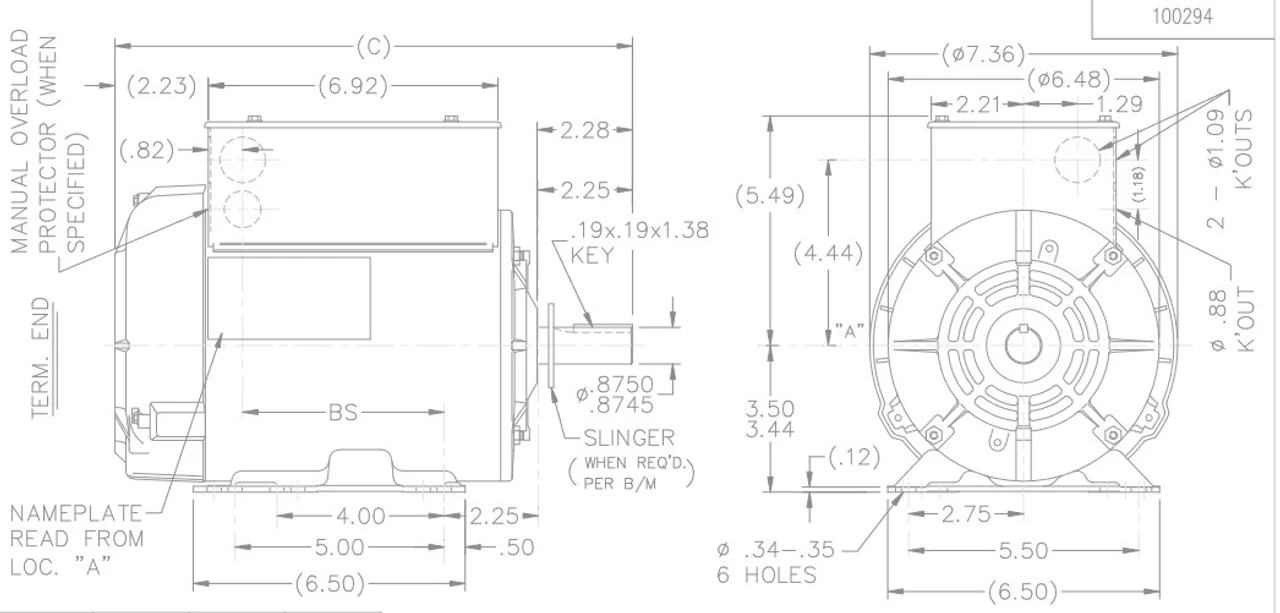

- NEMA 145T frame, Keyed Shaft 7/8″ Diameter x 2 1/4″
- Service Factor: 1.15, Overload protection = Manual
- Rigid Base, Reversible, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
This motor is perfect for running wood-shop power tools with their flying wood chips. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. 145TBFR5309
Be the first to review “T031 Marathon 3 Hp 208-230V 3600 RPM 145T Frame TEFC Cap Start/Run Woodshop Motor”
