Original price was: $391.00.$99.99Current price is: $99.99.
- Shop the Best Quality Online
- Elevate Your Shopping Experience
- Fast and Secure Payments
- Get the quality you deserve, for less.

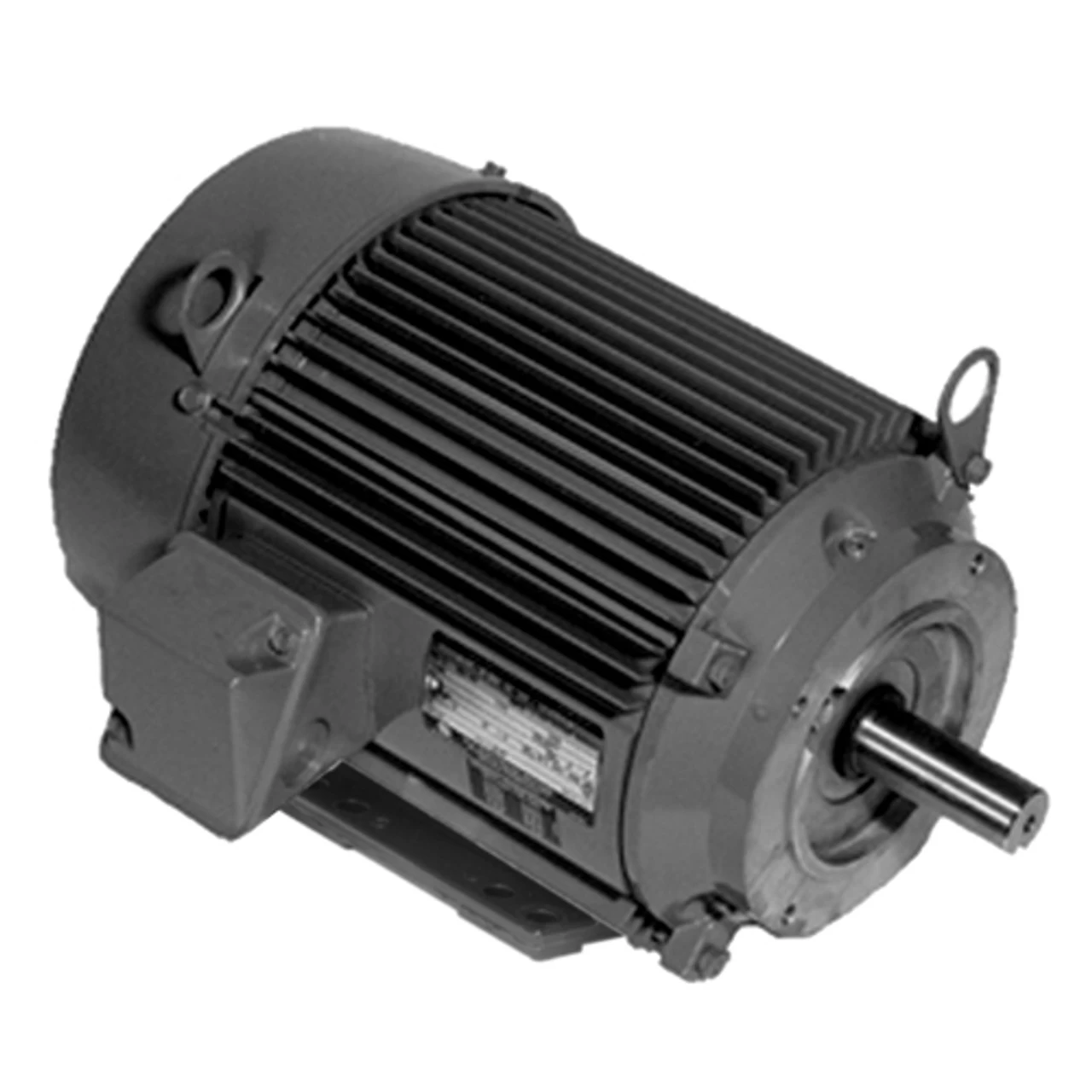

- 7 1/2 hp 3600 RPM, 19.9-17.8/8.9 amps 208-230/460 Volts 60 Hz Three Phase Motor

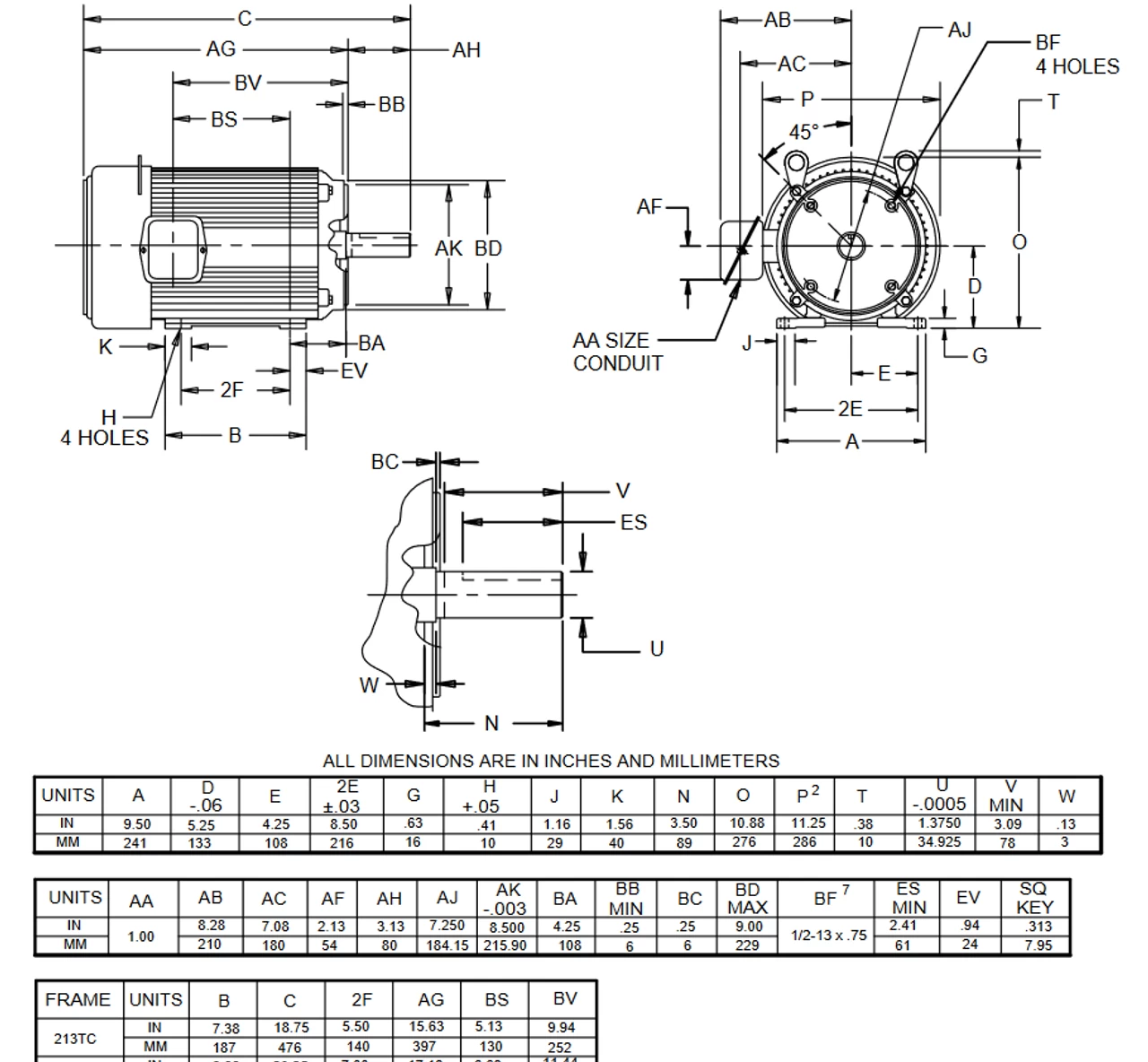

- NEMA 213TC frame Keyed Shaft 1 1/8″ Diameter x 2 1/4″
- Service Factor: 1.25, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose C- Face motor can be used for many applications requiring a three phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. DP51
Be the first to review “U7P1DC Nidec 7 1/2 Hp 3600 RPM 213TC Frame 208-230/460V TEFC 3-Phase Electric Motor”
